Maximum load and rotation capacity
Head & Tail Stock: 10 MT @ Maximum 200 mm ECC
Head Stock only (overhung): 5.0 MT @ Maximum 200 mm ECC
5.00 MT @ 250 mm GC
3.50 MT @ 350 mm GC
2.70 MT @ 450 mm GC
2.20 MT @ 550 mm GC
1.90 MT @ 650 mm GC
1.60 MT @ 750 mm GC
1.40 MT @ 850 mm GC
GC: Center of Gravity in mm measured from the Headstock table surface.
ECC: Eccentricity in mm
Specifications:

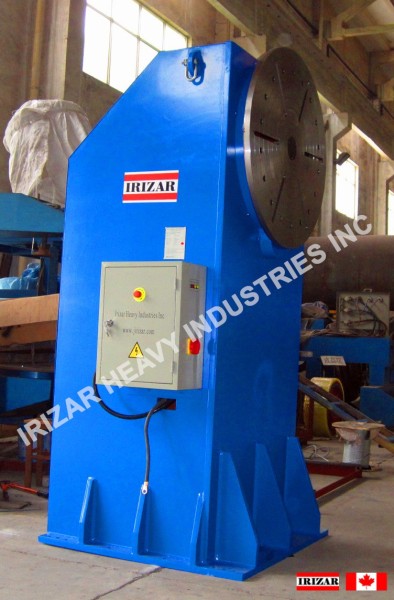

Head Stock: Fixed to the floor.
Tail Stock: Mounted on idler bogies to adjust workpiece length.
Adjustable Rotation Center: From 800 up to 1,800 mm
Effective stroke vertically: 1,000 mm
Elevation speed: 600 mm/min
Rotation speed: From 0.10 to 1.00 RPM
Table diameter: 1,000 mm
Table with “T” shaped channels @ 45 degrees
Control Box: Forward/Stop/Reverse/Wireless speed adjustment with digital display
Power: 7.00 kw
Electric Input Power: 480/60/3 or 380/50/3
Estimated Weight: 10.00 MT
Rail & chuck: Not included.
Warranty: One year
Operation Manual & Electric Diagram: Included
Delivery Time:
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
