The Welding Cross Slide is used for positioning (moving) the welding head up/down and left/right on a welding manipulator. Available in three options: a) Manual Cross Slide for Single Head with 50 kilos @ 6” GC, b) Motorized Cross Slide for Single head for 50 kilos @ 6” GC or 100 kilos @ 12” GC, c) Motorized Cross Side for Tandem Welding Head for 300 kilos @ 23” GC. Welding Cross Slide, also known as Manual Welding Cross Slide, Motorized Welding Cross Slide and Powered Welding Cross Slide
Manual Single-Head Cross Slide
- Stoke (mm): 80 x 80
- Max load: 50 kilos @ 6" GC
Motorized Single-Head Cross Slide
- Stroke: 80 mm x 80 mm (3” x 3”)
- Max load capacity: 50 kg @ 6” GC.
- Electric Input Power: 208-240 V, 50/60/ Hz, 1P
- Included: Cross slide, Main control box and Hand control (up/down & left/right)

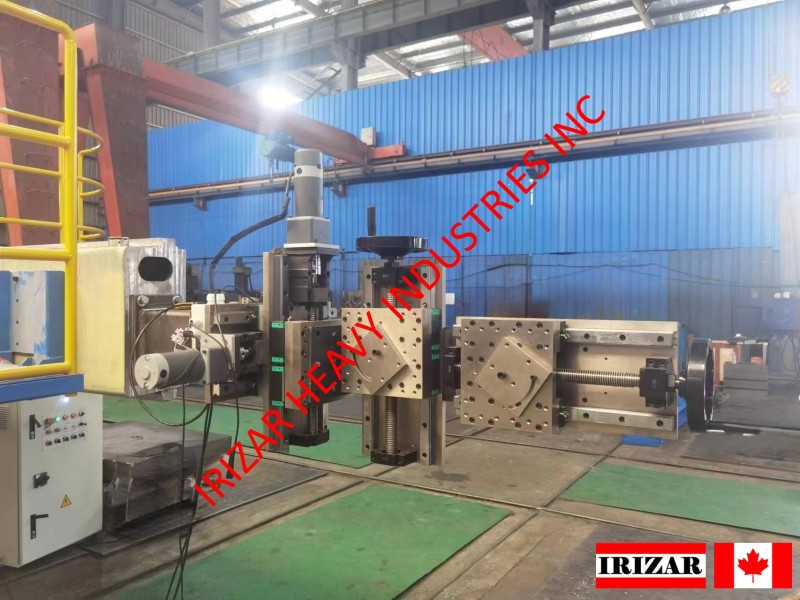

Motorized Tandem Head Cross Slide
- Main cross slide, one unit
Max load 300 kg, @ 23″ GC.
Stroke (mm) 200 x 200 - Horizontal manual cross slide, one unit
Max load 200 kg, @ 12″ GC.
Stroke (mm) 200 with pivot - Vertical manual cross slide, one unit
Max load 200 kg, @ 12″ GC.
Stroke (mm) 200 with pivot - 90-degree swivel, one-unit
- L-Mounting bracket
- Hand pendant control (up/down & left/right)
Delivery Time:
Within Canada: Three to five business days
World-Wide: One or two weeks
