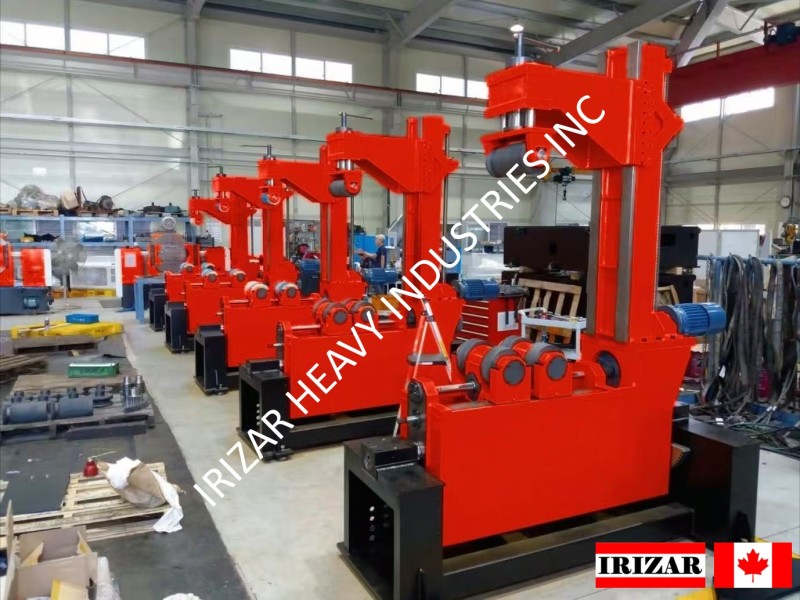

Pipe Rotators PP Series, provide quick positioning and welding pipes with elbows or tee pieces; and, pipes with eccentric (offset) loads. It comes with variable speed, ± 45º tilt angle, and assisting pressure column for pipe clamping without chuck.
Pipe Positioner Model PP-1
- Load and rotation capacity: 1 MT
- Pipe Diameter Range: From 50 up to 426 mm
- Variable Speed: From 70 up to 1,700 mm/minute
- Tilt angle: ± 45º
- Column Assisting Pressure: ≤ 450 Kilos
- Column Lifting Speed: 300 mm/minute
- Control Box: Forward/Stop/Reverse/Speed Adjustment
- Power: 0.75 kw
- Estimated Weight: 1.00 MT
- Warranty: One year
- Operation Manual & Electric Diagram: Included
Pipe Positioner Model PP-2
- Load and rotation capacity: 2 MT
- Pipe Diameter Range: From 50 up to 630 mm
- Variable Speed: From 70 up to 1,700 mm/minute
- Tilt angle: ± 45º
- Column Assisting Pressure: ≤ 450 Kilos
- Column Lifting Speed: 300 mm/minute
- Control Box: Forward/Stop/Reverse/Speed Adjustment
- Power: 1.10 kw
- Estimated Weight: 1.25 MT
- Warranty: One year
- Operation Manual & Electric Diagram: Included
Pipe Positioner Model PP-3
- Load and rotation capacity: 3 MT
- Pipe Diameter Range: From 50 up to 800 mm
- Variable Speed: From 70 up to 1,700 mm/minute
- Tilt angle: ± 45º
- Column Assisting Pressure: ≤ 450 Kilos
- Column Lifting Speed: 300 mm/minute
- Control Box: Forward/Stop/Reverse/Speed Adjustment
- Power: 1.10 kw
- Estimated Weight: 1.50 MT
- Warranty: One year
- Operation Manual & Electric Diagram: Included
Delivery Time:
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
