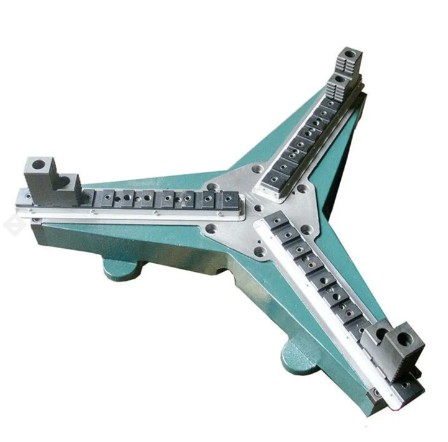

Three-Jaw Self-Centering Welding Gripper Chuck
Model 3J-615-1 MT
Specifications:
Inner Jaw Clamping Range OD: 85 – 530 mm
Outer Jaw Clamping Range OD: 170-615 mm
Max load capacity: 1 MT @ 5” from table surface
Max In Torque (N-m): 250
Max Clamp Force (kN): 35
Mounting holes (mm): M12*150 @ Nos 6
Swing diameter: 750 mm
Weight: 68 kg
Notes:
Maximum torque allowed: Check the chuck's engraved information
Irizar Chucks are designed for welding at low speed, not for use on a lathe at high speed.
Delivery Time:
By truck:
Within Canada: Three to five business days
USA & US-Mexican border: One week
By courier: 24 to 48 hours
Worldwide: Four to five business days
