Description:

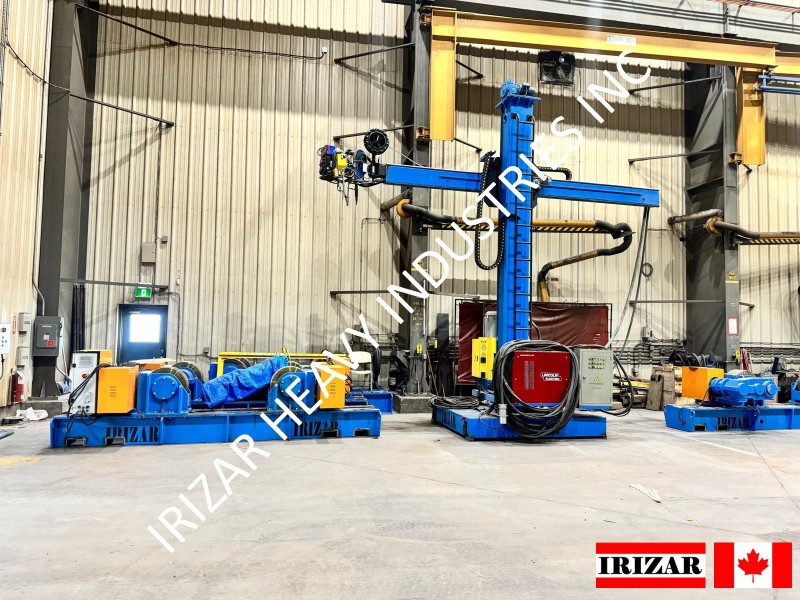

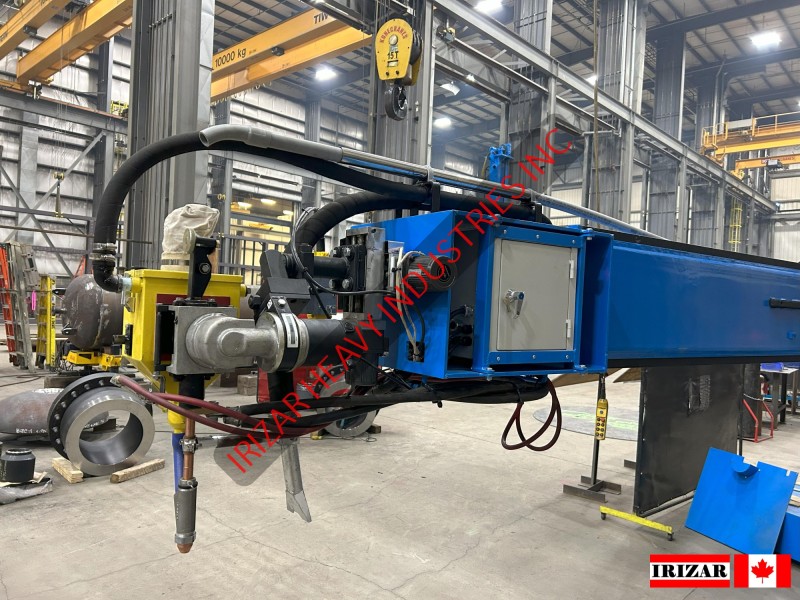

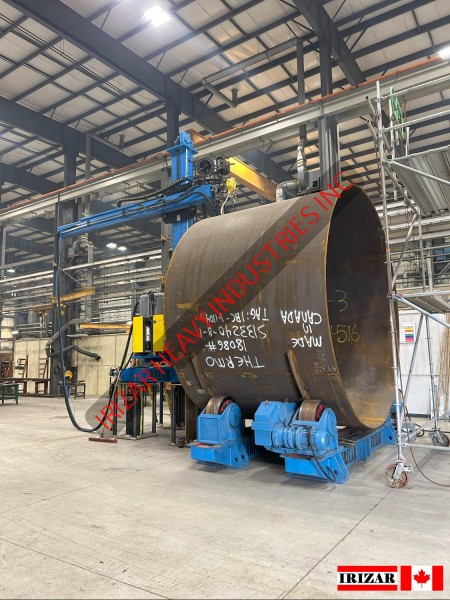

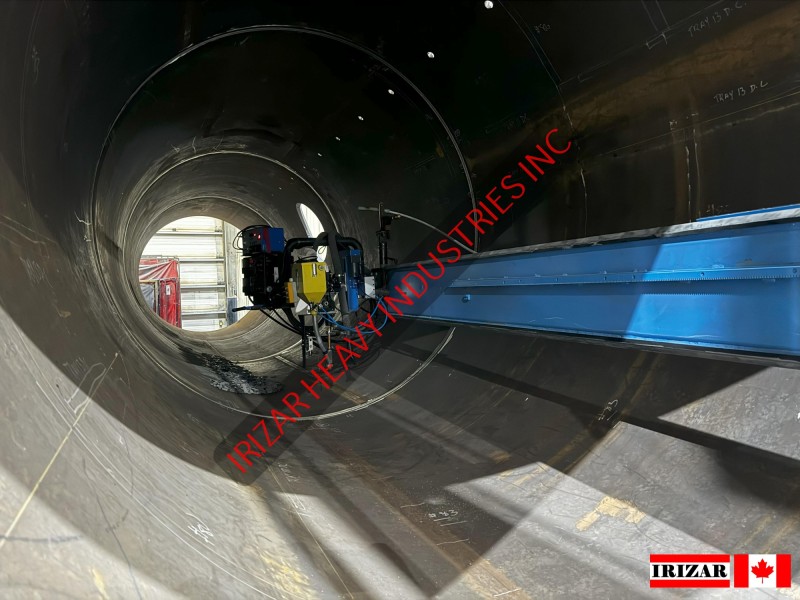

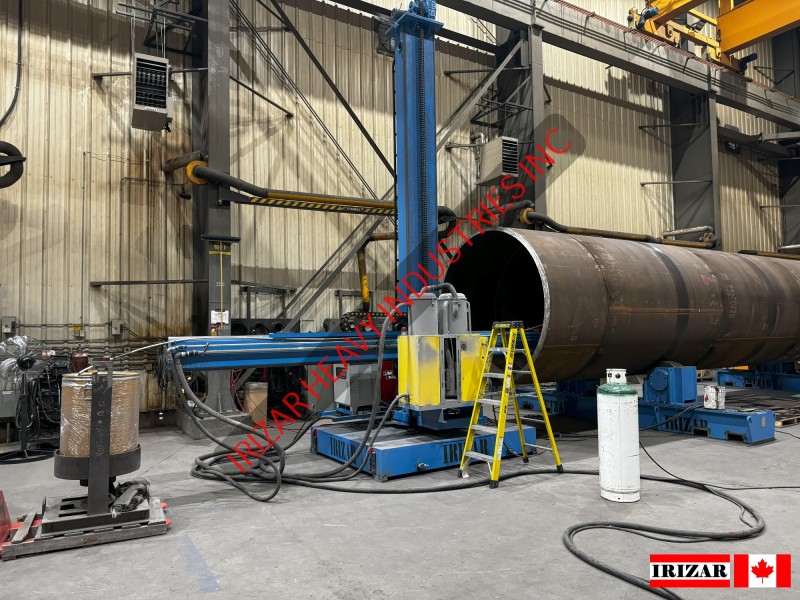

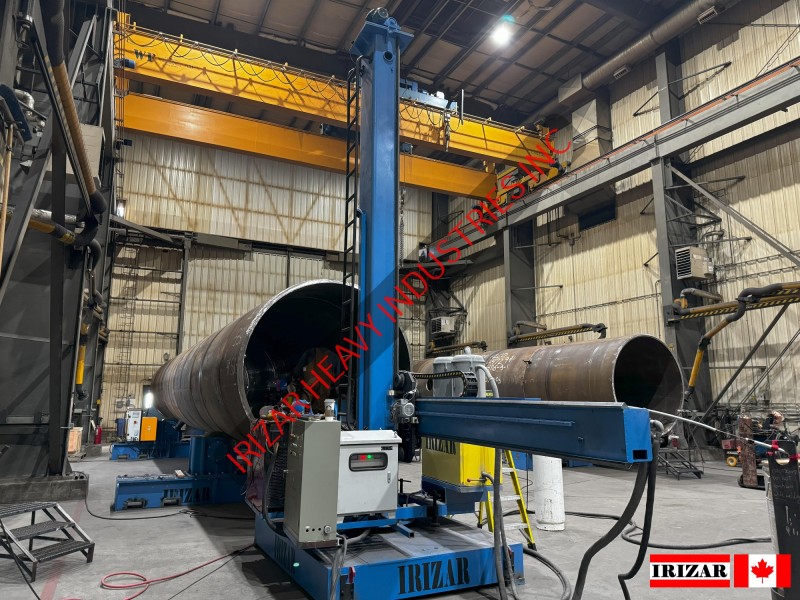

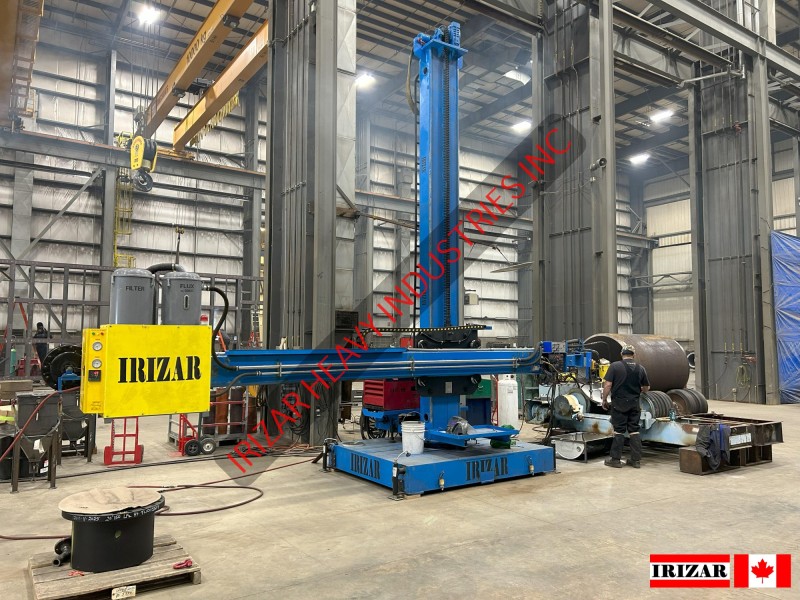

The Welding Manipulator is used for automated SAW, MIG, FACAW, and TIG welding on pipes, tanks, and pressure vessels, combined with Tank Turning Rolls, Welding Positioners, or Head & Tailstock Positioners. Irizar manipulators primarily consist of a column, a boom, and a motorized trolley (also known as a travelling car). We supply the manipulator itself, equipped with a power source, welding head, welding controller, flux recovery system, motorized cross slide, and seam tracker. Welding Manipulators are also known as Welding Booms, Welding Columns or Welding Column and Boom (C&B). Irizar Heavy Industries Inc. is proud to manufacture the world's largest Welding Manipulators and hold the world's largest stock.
Specifications:
- Effective expansion:
Boom vertical effective expansion (up-down): 5.0 m
Boom horizontal effective expansion (in-out): 5.0 m - Maximum load at boom extremity: 300 kilos @ 12” GC
- Speed:
Boom vertical speed: 0.90 m/minute
Boom horizontal speed: From 0.12 to 1.2 m/minute
Column rotation (± 180 ͦ ): Motorized
Trolley speed: 1.50 m/minute - Boom height:
Minimum: 1.10 m
Maximum: 6.10 m - Column height: 7.80 m
- Power: 3.35 kw
- Weight: 5.0 MT
- Warranty: One year
- Operation Manual & Electric Diagram: Included
- Video
- 3D View
Options:
- Lincoln Power Source DC 1000
- Welding Controller

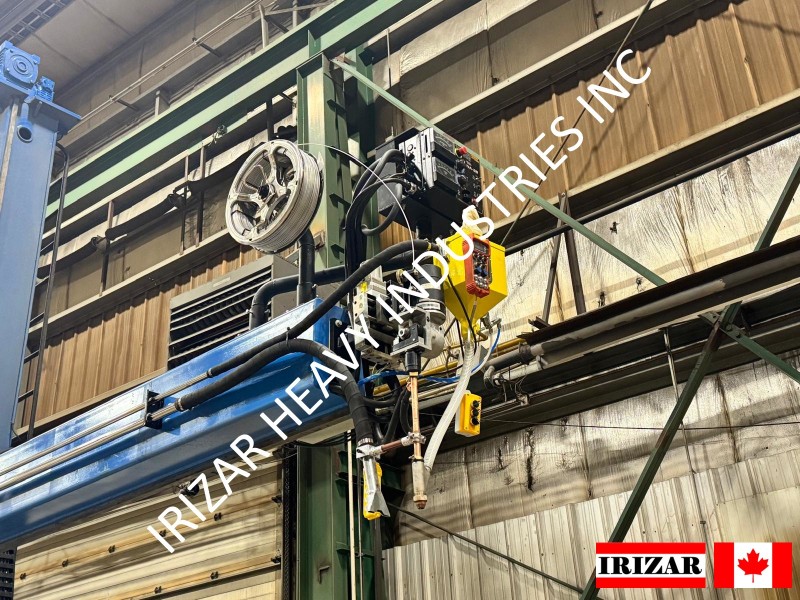

- Welding Head Wire Feeder
- Manual Single-Head Cross Slide
- Motorized Single-Head Cross Slide
- Seam Tracker Single Head Model 100
- Boom Wireless Remote Control
- Flux Recovery Model FRU-50
- Flux Recovery Model FRU-100
- Flux Recovery Model FRU-150 (Complete Set)

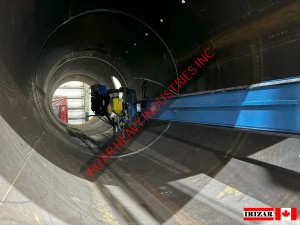

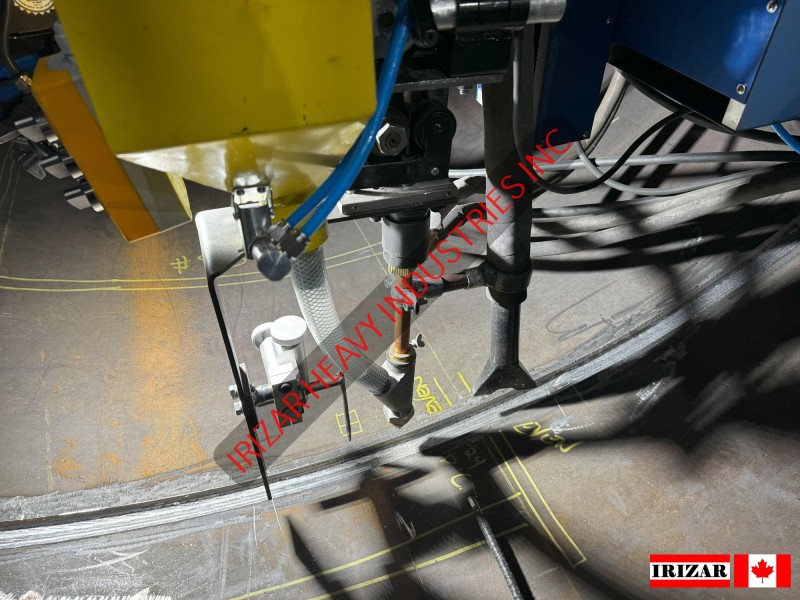

WM Longitudinal and Circumferential SAW
Notes:
1. The Welding Procedure Specifications (WPS) and the Procedure Qualifications Records (PQR) must be qualified by the user, considering the applicable Codes and Standards. It should be designed by a welding engineer who selects the essential welding parameters, such as joint design, base material, wall thickness range, filler metal, position, preheating temperature, flux, amperage, voltage, and welding speed, among others. The user is responsible for certifying WPS & PQR before deploying the equipment at the job site.
2. The Welder Qualification Test (WQT) remains the user’s responsibility. It is not Irizar's scope to train submerged arc operators; the user shall have/hire an experienced welder’s operator(s) with an updated WQT ticket(s).
Delivery Time:
Within Canada: Three to five business days
USA & US-Mexican border: One week
Latino America: Four weeks
World-Wide: Five to six weeks
