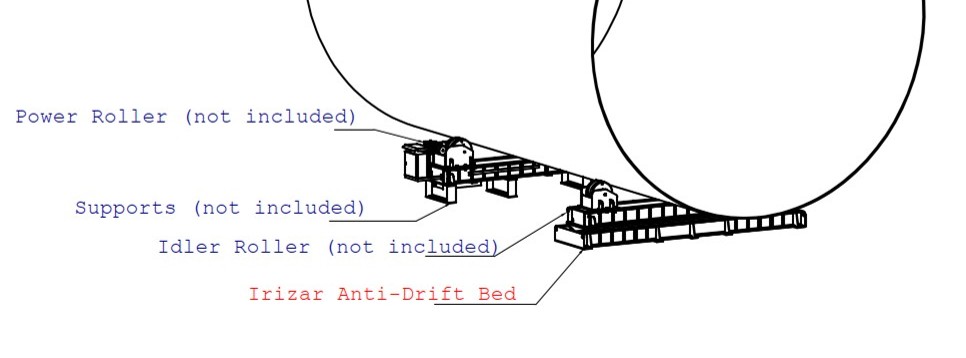

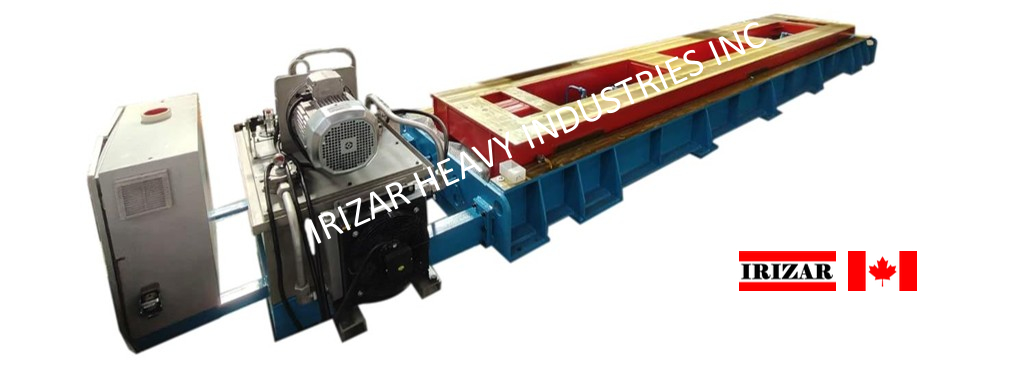

The Anti-Drift Conversion Kit [AD-CK] is a new technology that transforms any conventional welding rotator, regardless of the supplier, into an anti-drift system. Our company researches, manufactures, and tests advanced technologies in our field. The AD-CK is one of our most groundbreaking technologies; it is unique worldwide and the first of its kind. "Patent in Progress". The AD-CK is designed to minimize longitudinal displacement [forward or backward] of the workpiece during rotation on conventional welding rollers. This common phenomenon is often referred to as the "screw effect". Occurs due to several factors:
1. The workpiece rotates a substantial number of turns while welding a large thickness.
2. Irregular workpiece (out of roundness)
3. An unbalanced center of gravity
4. Non-cylindrical geometries of the workpiece, such as a cone
5. An uneven shop floor
6. Misalignment of the roller beds
7. A combination of these factors.
The Anti-Drift Conversion Kit ensures a longitudinal vessel accuracy displacement of ±3.0 mm. This level of precision is achieved through the use of a Programmable Logic Controller (PLC) and a Sensor Automatic Anti-Drift Controller.
Anti-Drift Conversion Kit Models:
Model AD-CK 100-250 MT
Model AD-CK 250-600 MT
Model AD-CK 600-1200 MT
